A Battery Management System (BMS) is an essential electronic system in many lithium battery packs. It monitors battery operating conditions, manages charging and discharging, and helps protect battery cells from unsafe operating conditions.
For equipment manufacturers, distributors, and OEM buyers, choosing the right BMS is just as important as selecting the right battery cells. The BMS must match the battery chemistry, series configuration, current requirements, operating temperature, and application.
In this guide, we explain how a BMS works, its main protection functions, and how to select a suitable BMS for your battery application.

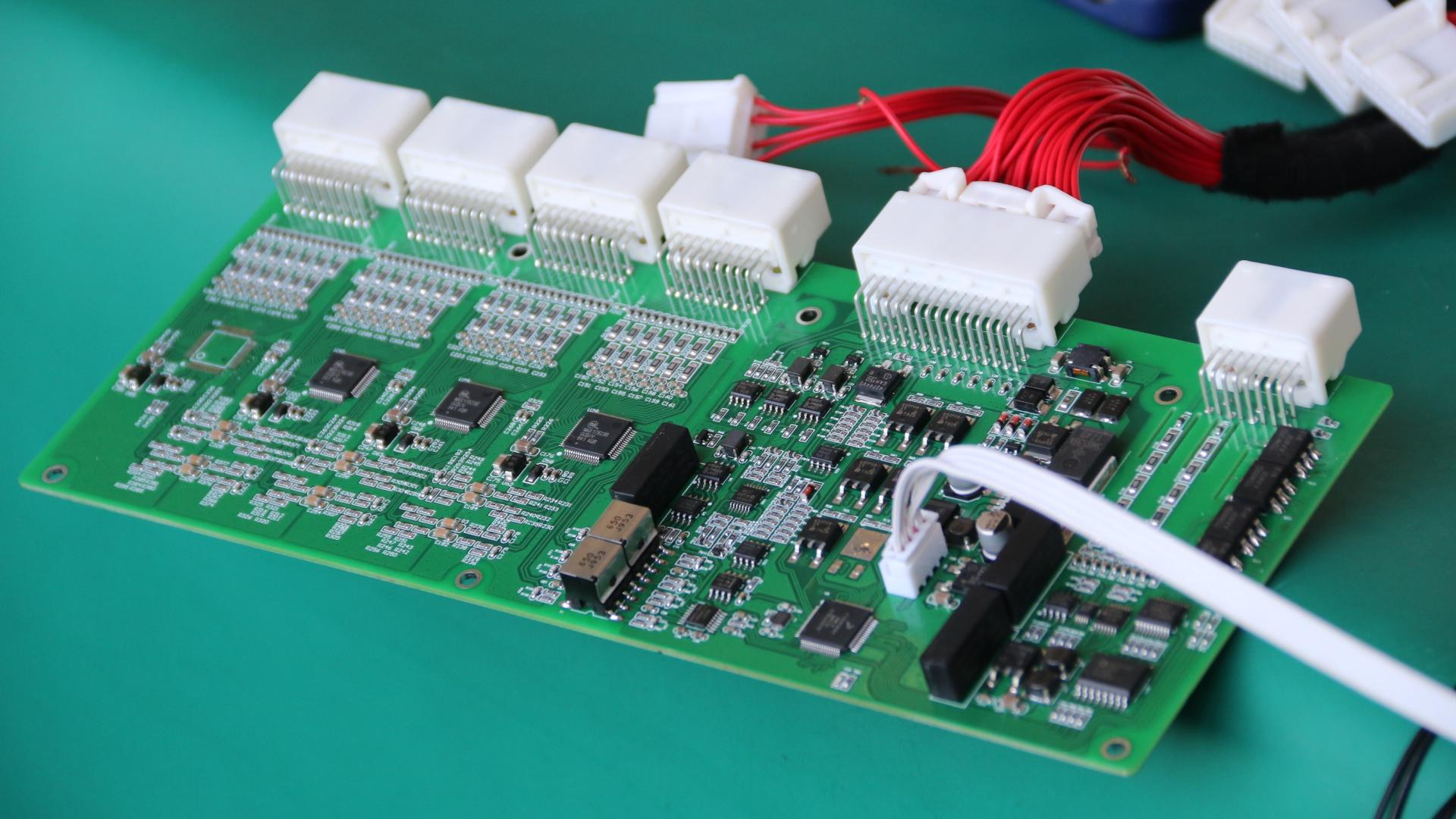

A Battery Management System is an electronic system designed to monitor and manage the operating conditions of a battery pack.
It can monitor individual cell-group voltages, battery current, and temperature. Depending on its design, it may also provide cell balancing, state-of-charge estimation, fault alarms, and communication with external equipment.
When abnormal conditions occur, the BMS can limit charging or discharging, disconnect the battery circuit, or send a warning signal to the connected equipment.
A properly designed BMS helps improve battery safety, reliability, and service life when used with compatible cells, chargers, and loads.
Overcharging occurs when a cell exceeds its permitted charging voltage.
A BMS monitors cell voltages and can stop or interrupt charging when the configured protection threshold is reached. This helps prevent cell damage and reduces safety risks.
The correct voltage threshold depends on the battery chemistry and the cell manufacturer's specifications.
Over-discharge occurs when a battery cell voltage falls below its permitted limit.
The BMS can disconnect the load when a cell reaches its configured low-voltage threshold. This helps prevent excessive discharge, which can permanently damage lithium cells.
For applications with long standby periods, such as solar street lights and remote monitoring systems, low standby power consumption and appropriate low-voltage protection are particularly important.
Overcurrent occurs when the charging or discharging current exceeds the permitted limit.
A BMS can monitor current and interrupt the circuit when excessive current is detected. The required protection settings depend on the cell specifications, wiring, connectors, load characteristics, and expected operating current.
Motor-driven equipment may have high startup currents, so the BMS must be selected to accommodate legitimate transient loads without compromising protection.
A short circuit can cause an extremely high current to flow through the battery pack.
A BMS with short-circuit protection can disconnect the output when a fault is detected. A suitable fuse and properly designed wiring provide additional protection.
Short-circuit response characteristics vary between BMS designs, so they should be verified against the application requirements.
Battery performance and safety depend on operating temperature.
A BMS may use temperature sensors to monitor the battery pack and interrupt charging or discharging when temperatures exceed configured limits. Some designs also prevent charging when the battery is too cold.
Temperature thresholds must follow the cell manufacturer's specifications and the intended application. Low-temperature charging requirements vary by battery chemistry and cell design.
Cells connected in series may gradually develop differences in voltage and state of charge.
A balancing function helps reduce these differences and maintain more consistent cell-group voltages. Depending on the design, a BMS may use passive or active balancing.
Cell balancing is especially relevant to battery packs with multiple cells connected in series.
| Protection function | Purpose |
|---|---|
| Overcharge protection | Helps prevent cell overvoltage during charging |
| Over-discharge protection | Helps prevent excessive cell discharge |
| Charge overcurrent protection | Protects against excessive charging current |
| Discharge overcurrent protection | Protects against excessive load current |
| Short-circuit protection | Disconnects the circuit when a short-circuit fault is detected |
| High-temperature protection | Helps prevent operation at excessive temperatures |
| Low-temperature charging protection | Prevents charging outside permitted temperature conditions |
| Cell balancing | Helps reduce voltage differences between series-connected cell groups |
Not every BMS includes every function. Protection thresholds, response times, recovery methods, and monitoring capabilities vary by model.
Selecting a BMS requires more than matching the battery's nominal voltage. The following factors should be considered.
Different lithium battery chemistries have different voltage limits and operating characteristics.
LiFePO4: Requires protection settings appropriate for lithium iron phosphate cells.
NMC/NCA lithium-ion: Requires settings appropriate for the specific lithium-ion cell model.
LTO: Uses a different cell-voltage range and requires a compatible BMS.
Other battery chemistries: Require a management or protection solution designed for their specific characteristics.
A BMS designed for one chemistry should not automatically be used with another.
The BMS must support the number of cells connected in series.
For example, a 7S lithium-ion battery pack has seven cell groups connected in series. Its total voltage limits depend on the individual cell specifications and the selected protection settings.
Always confirm the BMS series configuration and voltage limits before selecting a model.
The BMS continuous current rating must support the maximum expected operating current under the actual thermal conditions.
Peak current capability must also accommodate startup surges, acceleration, or other transient loads where applicable.
For example, a battery pack designed for a 5 A continuous load may not require the same BMS as a battery pack powering a high-current motor, even if both packs have the same nominal voltage.
The battery cells, conductors, connectors, fuse, and BMS must all be suitable for the intended current.
Consider the expected ambient temperature, battery temperature, enclosure design, and heat dissipation.
Outdoor solar lighting, electric vehicles, and industrial equipment may require different temperature-monitoring arrangements and protection settings.
Basic BMS designs may provide essential protection functions without external communication.
More advanced models may support UART, RS485, CAN, Bluetooth, or other interfaces, depending on the design.
For battery systems requiring remote monitoring, confirm that the BMS communication protocol is compatible with the controller, gateway, or cloud platform. Having a communication port alone does not guarantee compatibility with a particular monitoring system.
A basic BMS focuses primarily on battery protection and, where included, cell balancing.
A smart BMS may additionally provide battery voltage and current data, temperature readings, estimated state of charge, fault information, and communication with external equipment.
For simple battery applications, a basic BMS may be sufficient. For energy storage, industrial equipment, and remote power systems, a smart BMS may offer useful monitoring and integration capabilities.
The appropriate choice depends on the application, budget, monitoring requirements, and system architecture.
Solar street light batteries require suitable charging and discharging protection, appropriate temperature settings, and compatibility with the solar charge controller.
For outdoor installations, cell chemistry, operating temperature, standby consumption, and expected charging conditions should all be considered.
Energy storage applications may require current monitoring, cell balancing, communication with an inverter or energy management system, and coordination with additional protective devices.
System-level protection requirements depend on the battery capacity, voltage, installation environment, and applicable standards.
These applications require careful consideration of continuous current, motor startup current, thermal conditions, vibration, and wiring design.
The BMS should be selected according to the battery cells and the actual electrical demands of the vehicle.
Custom battery packs may require specific dimensions, connectors, communication interfaces, protection settings, and operating-temperature ranges.
These requirements should be confirmed during the battery design stage rather than after the battery pack has been assembled.

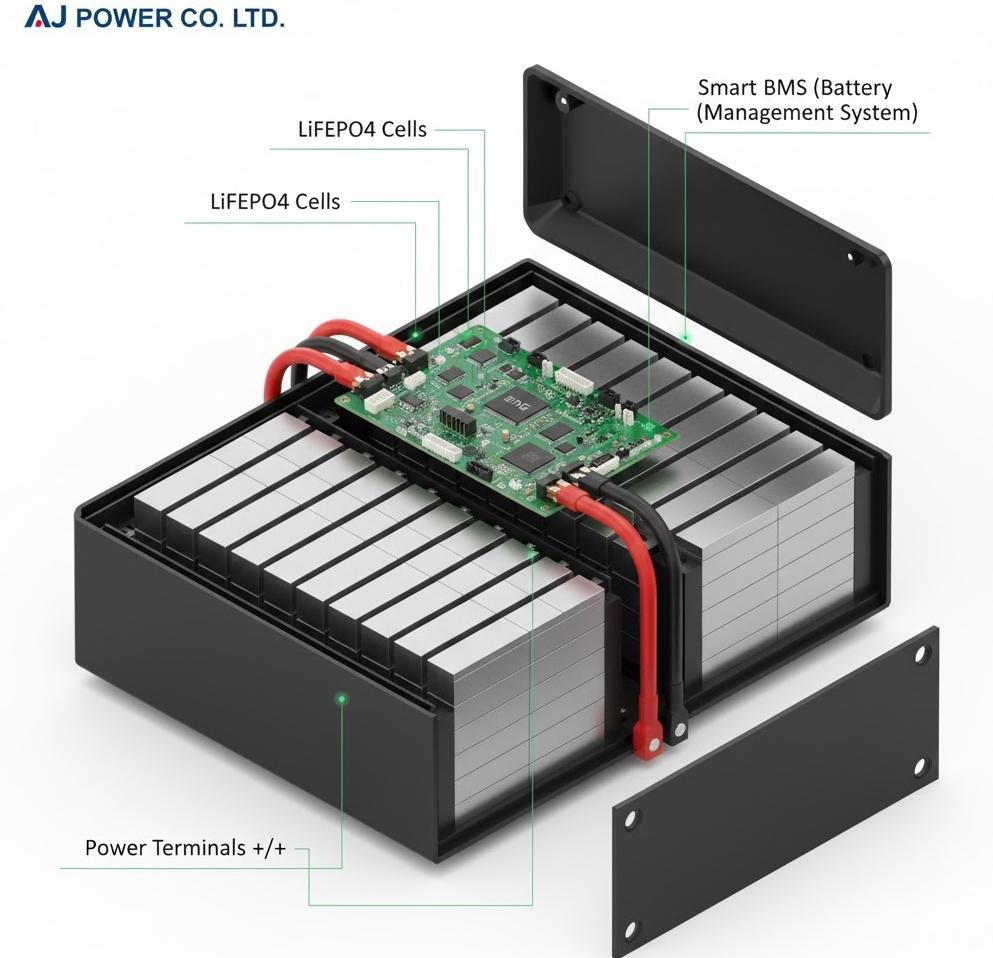

A battery pack is a complete system rather than a collection of cells alone. Cell selection, series-parallel configuration, BMS design, electrical connections, enclosure layout, and thermal management all affect the final product.
An unsuitable BMS may cause unnecessary shutdowns, insufficient current capability, incompatible charging behavior, or inadequate fault protection.
For OEM projects, it is important to define the battery requirements before production begins.
The information normally needed includes:
Nominal voltage and required capacity
Battery chemistry and cell model
Maximum continuous and peak discharge current
Required charging voltage and charging current
Battery dimensions and connector type
Operating temperature range
Required protection functions
Communication and remote-monitoring requirements
Expected application and purchase quantity
Haiying Battery provides battery solutions for a range of applications, including solar lighting, energy storage, vehicle batteries, portable electronics, and custom battery packs.
For OEM and project-based requirements, battery specifications should be evaluated according to the intended application, available installation space, electrical requirements, and required protection functions.
Depending on project needs, the design may involve battery cell selection, pack configuration, BMS matching, connector selection, and monitoring-system integration.
If you are developing a new product or looking for a customized battery pack, our team can review your requirements and discuss a suitable solution.
Contact Haiying Battery to discuss your custom battery project.
Please provide your required voltage, capacity, dimensions, operating current, application, and estimated order quantity so that we can better understand your requirements.
